DESCRIPTION

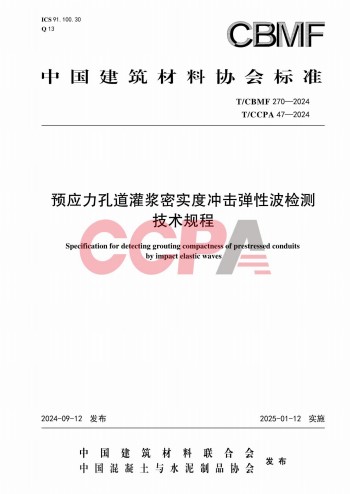

This CCPA standard is developed to standardize the application of the impact elastic wave method for detecting grouting compactness in prestressed conduits, ensuring the scientific validity and reliability of test results.

This CCPA standard is applicable to the assessment of grouting compactness in conduits of bonded prestressed structures constructed using the post-tensioning method, utilizing the impact elastic wave technique.

DOCUMENT DETAILS

This CCPA standard was drafted by CCPA Concrete Material and Engineering Detection Branch.

Issue date: September 12, 2024

Implementation date: January 12, 2025

Pages: 32

Categories: Grouting Compactness, Detecting Method

CONTENTS

1 General Provisions

2 Terms and Symbols

3 Detection Method and Process

4 Quality Testing

5 Inner Flaw Localization Testing

6 Evaluation and Report of Grouting Compactness

Appendix A Shock Elastic Wave Detector

Appendix B Reference Map for Positioning, Testing, and Judging the Density of Grouting in Channels

Appendix C Defect Verification and Handling

Explanation of Wording in This Specification

List of Quoted Standards

Addition: Explanation of Provisions
